Mercedes C43 AMG Stage 2+ Build
The Mercedes C43 AMG is already a strong platform from factory.
Twin turbo V6, solid drivetrain, responsive chassis. But once you start freeing up airflow and increasing boost properly, the car becomes completely different.
This particular C43 came in for a full Stage 2+ setup. The goal was simple. Build the car properly, keep it reliable on Thailand fuel, and make sure every supporting system was addressed instead of just flashing an ECU tune and calling it done.
What We Did
This build started with the exhaust side.

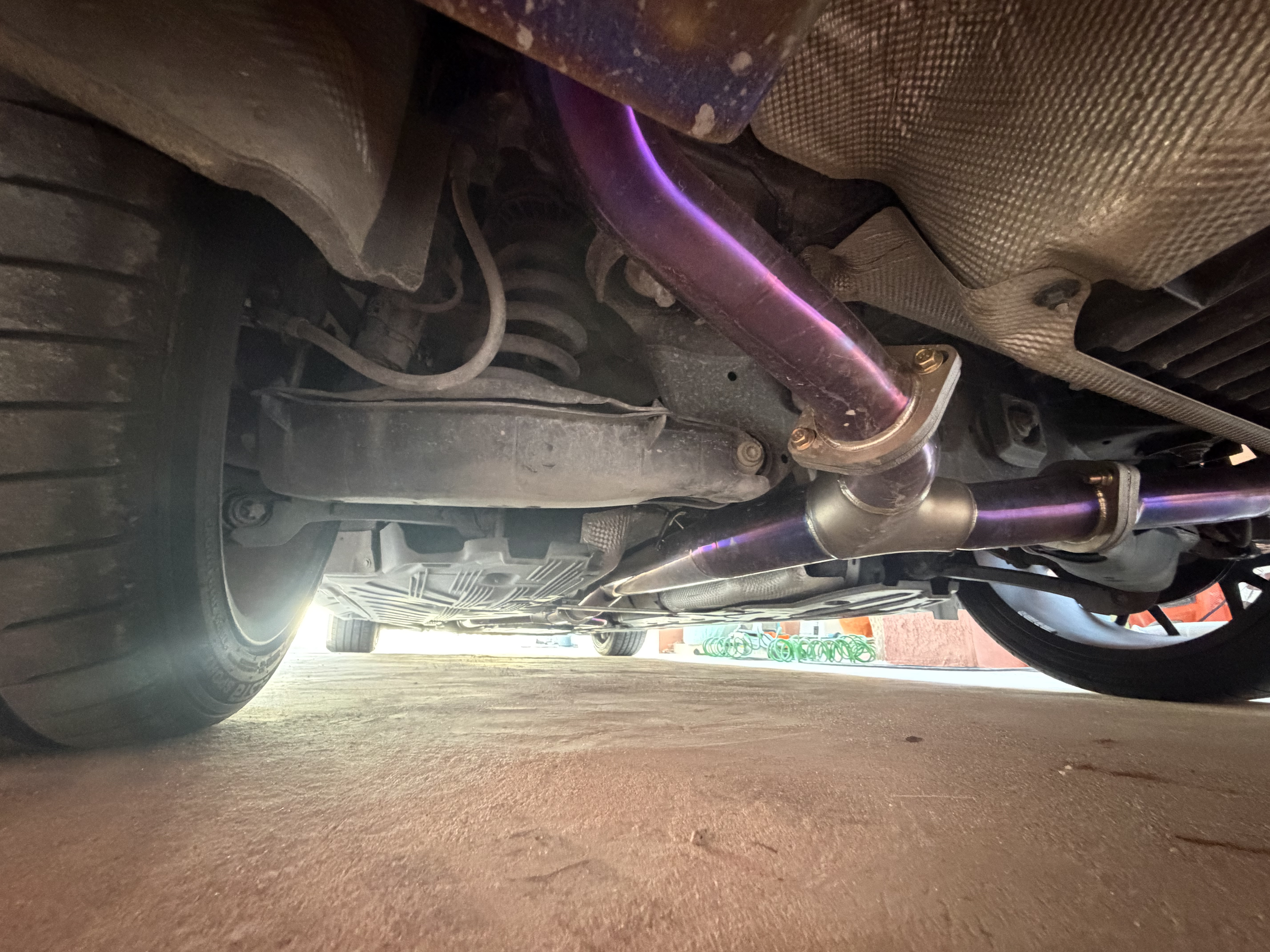

We installed catless downpipes along with a full 3-inch pullback exhaust setup. At this point, there is essentially no restriction from the turbochargers backward. The car breathes properly, spool improves, and exhaust backpressure is massively reduced.
Once you open these cars up mechanically, the tuning side becomes critical.
We carried out a full Stage 2 ECU remap alongside a TCU tune for the gearbox. On the newer Mercedes AMG platforms though, one of the biggest things many people miss is the CPC module.
The CPC controls a large amount of the torque intervention and limitation strategies on these cars. You can increase boost with an ECU tune, but if the CPC is still stock, the car will continue imposing torque limits in the background.
That is why this build also received a CPC upgrade and calibration.
Without it, you are not fully unlocking the platform.
Fuel Quality Matters in Thailand
One of the biggest realities with tuning European cars in Phuket is fuel quality.
This entire setup was calibrated around local 95RON to 98RON pump fuel. No race fuel. No ethanol blends hiding poor calibration. Real-world conditions.
During the tuning and data logging process, we noticed intake air temperatures climbing higher than we were comfortable with. On boosted cars, especially in Thailand’s climate, intake temps become a major factor very quickly.
Higher intake temps reduce consistency, reduce timing potential, and increase knock risk.

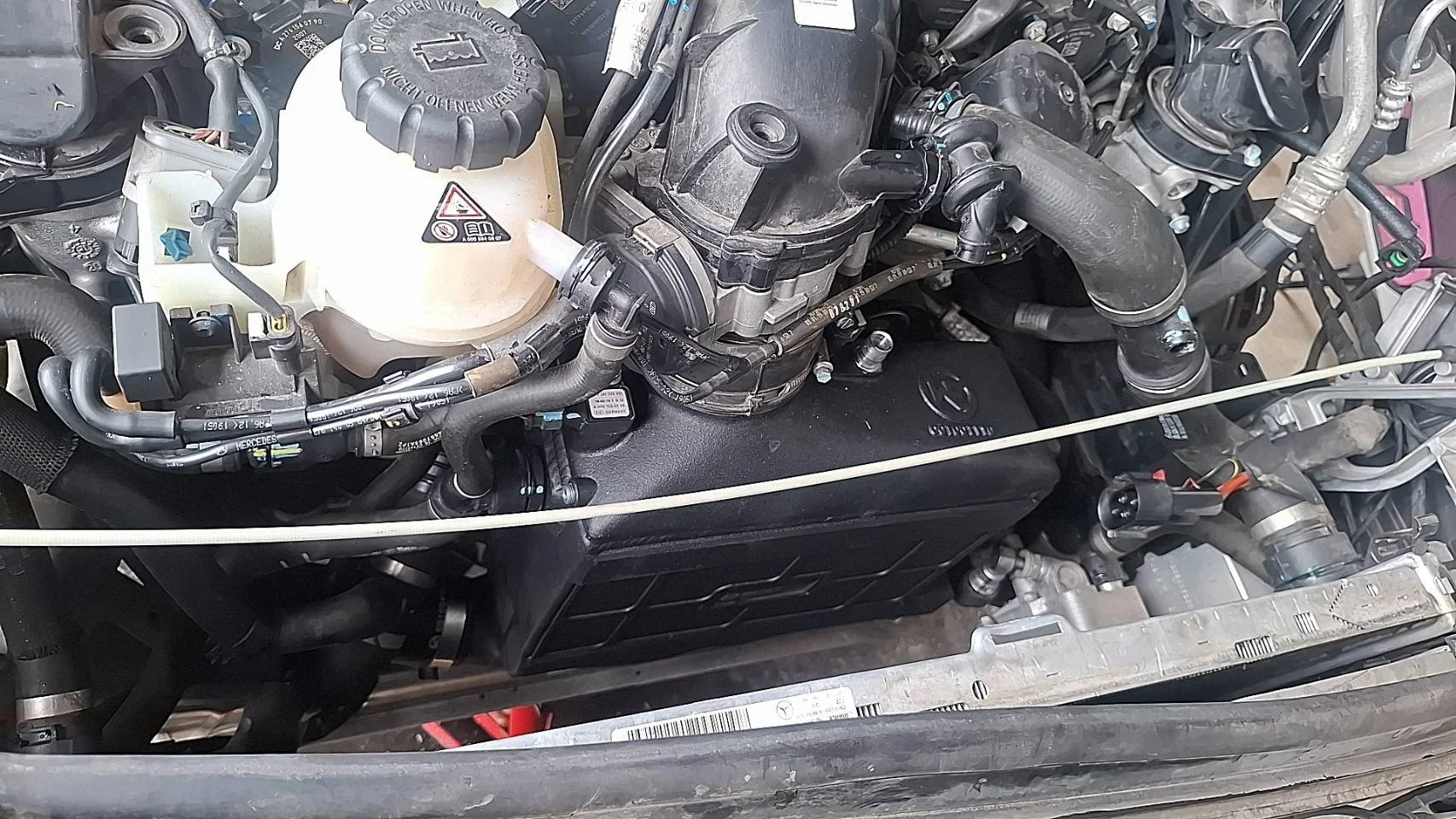

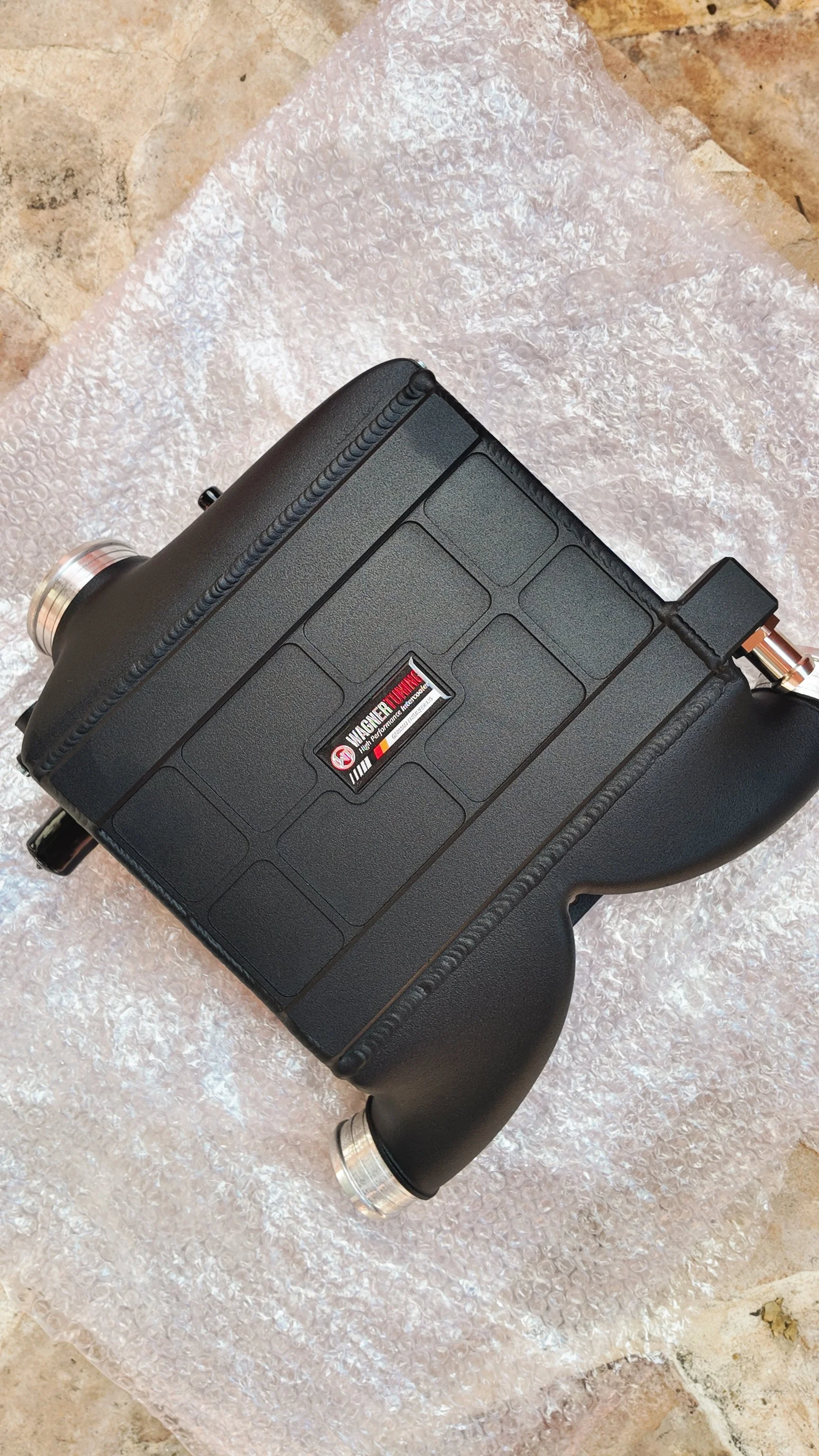

So we made the decision to install a Wagner intercooler.
Immediately after installation, intake temperatures dropped significantly during logging. Once the charge air temps stabilised properly, we were able to safely advance ignition timing and increase boost pressure further without introducing knock or detonation concerns.
Final target boost pressure on this setup is now sitting at 22 PSI.
The car now runs extremely clean, extremely strong, and consistently pulls hard throughout the rev range.
Where the Limits Are Now
At this point, this C43 AMG is essentially maxed out for a factory turbo Stage 2+ setup.
The next bottlenecks become:
Turbocharger flow limitations
Fueling capacity at higher RPM
Overall airflow demand at elevated boost levels
We are already starting to see fueling limitations appear higher in the rev range, which is normal once these platforms start pushing harder.
From here, the next step would be hybrid turbos or full-frame upgraded turbos alongside proper fueling upgrades.
But for a stock turbo C43 on Thailand pump fuel, this setup performs extremely well.
Why Proper Supporting Mods Matter
A lot of shops focus only on chasing dyno numbers or peak boost targets.
That is not how you build reliable European performance cars in Thailand.
Every supporting component matters:
Intake temperatures
Fuel quality
CPC limitations
Gearbox calibration
Knock control
Boost control strategy
Heat management
Ignoring those areas is how you end up with inconsistent cars that feel fast one day and terrible the next.
This build was done properly from start to finish, including extensive logging and calibration adjustments after installation.
Key Takeaways
Catless downpipes and a 3-inch exhaust massively reduce restriction on the C43 platform
CPC tuning is critical on modern AMG platforms to properly remove torque limitations
Thailand heat and fuel quality must be considered during tuning
Wagner intercoolers make a major difference on intake air temperatures and tuning consistency
Lower intake temps allow safer ignition timing and higher boost targets
22 PSI on a stock turbo C43 requires proper supporting modifications and calibration
The next limitation after Stage 2+ becomes turbo flow and fueling capacity
